50KV 고전압 시험 장비, 1%FS AC 고전압 테스터

50KV High Voltage Test Equipment , 1%FS AC High Voltage Tester
50KV High Voltage Test Equipment , 1%FS AC High Voltage Tester

큰 이미지 :  50KV 고전압 시험 장비, 1%FS AC 고전압 테스터

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HNMC
모델 번호: JTKZ-1KVA/50KV
결제 및 배송 조건:
최소 주문 수량: 1
가격: negotiable
포장 세부 사항: 나무로 된 패키지
배달 시간: 10-25 일
공급 능력: 달 당 20개 세트
상세 제품 설명
디스플레이: 3 1/2 디지트 LED 디스플레이 정확도: 일천초분의 일초의 +/-1%
정격 출력 전압: 0-250V 정격 출력 현재: 0-4A
출력된 변압기: 50KV, 20mA 왜곡: 3% 미만
강조하다:

50KV High Voltage Test Equipment

,

250V High Voltage Test Equipment

,

1%FS AC High Voltage Tester

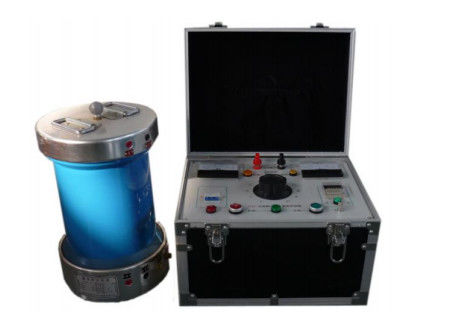

HV AC Test System JTKZ-1Kva/50kV



System comprised of

1. Control Box

2. Test Transformer

3. Other all necessary accessories for completing the test



Features and Technical Index



Control Box (including voltage regulator inside)

Features

1. Portable and used in worksite for test of AC dielectric

2. 3 1/2 digit, digital LED display output voltmeter and current meter

3. Adjustable over current trip from 10% to 110% of rating

4. Stepless adjusting voltage

5. Can choose current protection function according to range

6. Output terminal: toroid with 3 meter output cable, long shielded with alligator clamp for test connections

7. With overload and internal short circuit protection

8. Test HV power will be cut off and alarm will come when breakdown happens to test object

9. Manual operation and with zero start (safety interlock)

10. Small dimension & light weight, easy to carry

11. Power supply: AC 220V±10%, 50HZ

12. Distortion: less than 3% at full load

13. High accuracy: ±1% of FS

14. Operation temperature: -20℃-﹢50℃



Technical Index



Rated input 220V, 1kVA, 4.5A, 50HZ
Rated output 0-250V, 1KVA, 0-4A, 50HZ
Size & weight 420*300*260mm & 14KG (Approx)
Test transformer (Generate voltage&current)
Rated capacity & Frequency 1KVA, 50HZ
Rated input voltage & current 220V, 4.5A
Rated output voltage & current 50KV, 20mA
Resistance voltage ≤8%
Insulation level 110% of rated voltage, withstand 1min
Size & Weight (approx) Dia 260mm, Height 350mm, 16KG





Accessory list



S.N. Name Quantity
1 Input power cable 2.4m 1 set
2 Interconnect (2pcs) cable 3m 1 set
3 Output lead 3m 1 set
5 Ground cable 3m 1 set
6 Manual in English 1 set
7 Factory test report 1 set
