제품 상세 정보:
결제 및 배송 조건:
|
| 정밀도 계급: | 0.05, 0.02 | 시험 기능: | 에러, 시작, 서행, 다이얼..기타 등등 |
|---|---|---|---|
| 증폭기 유형: | 선형 | 작동 유형: | PC 소프트웨어, 터치 스크린 |
| 전압 범위: | 최고 380V | 전류 범위: | 1mA-120A |
| 조화되는: | 2-51 번 | 시험 계량기 종류: | 다양한 단일 상 미터 |
| 강조하다: | 380V 에너지 계량기 Calibration,0.001HZ 에너지 계량기 Calibration,0.05 수업 고조파시험 장비 |
||

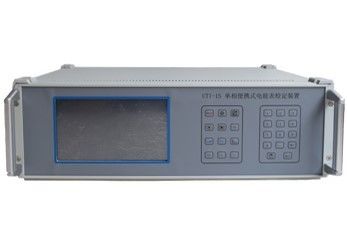

Portable Single Phase Meter Test Equipment UTI-1S
1. In-built Standard Reference Meter (SRM): accuracy class 0.05 or 0.02 (optional)
2. Error test, start test, creep test, dial test..etc
3. Measurement of volts, current, p.f., power, frequency, phase angle, harmonic..Etc.
4. Linear amplifier
5. Can be independent set & output of each phase voltage & current
6. Can set phase angle independently
7. Meter Rack: three positions are optional
8. Automatic control by PC software
9. Manual control by touch screen/keypad
10. Different test points selection
11. Display vector diagram and waveform
Technical Index
| Accuracy class | 0.05 or 0.02 (optional) |
| Measure range | |
| Voltage | 30-300V (P-N) (480V optional) |
| Current | 1mA-120A |
| Frequency | 45-70HZ, resolution 0.001HZ |
| Phase angle | 0-359.99°, resolution 0.001°, error 0.03° |
| Voltage source | |
| Range | 30-375V (P-N)/51V-650V(P-P), resolution: 6 digits valid value |
| Output Accuracy | 0.05% |
| Output power | 50VA/phase |
| Output stability | 0.02%/3mins |
| Output distortion | <0.5% |
| Load regulation (0-100% load) | 0.02% |
| Current source | |
| Range | 1mA-120A, resolution: 6 digits valid value |
| Output Accuracy | 0.05% |
| Output power | 100VA/phase |
| Output stability | 0.02%/3mins |
| Output distortion | <0.5% |
| Load regulation (0-100% load) | 0.02% |
| Other parameters | |
| Supply Voltage | AC 88-284V, 50/60HZ |
| Dimension (approx) | 510*600*170mm (main unit) |
Features
1) With in-built standard meter class 0.05 and with impulse outputs.
2) 7”LCD display, touch screen
3) Can test various of single phase electromechanical /electronic energy meter
4) Can test and display voltage, current, phase, error, active energy, reactive energy, apparent energy,
power, phase angle, power factor, frequency and etc
5) With enough protection, like short-circuit voltage, current open-circuit protection,
overload protection, over-voltage protection
6) 2-51 times harmonics test, adjustable harmonic amplitude (≤40%)
7) Can save test data 500pcs up
8) With two impulse inputs, can get connect with external reference when need, work together
with error processing system of unit and then comparing error, through connecting one power meter
9) With one option for choice between internal reference meter mode or external reference meter mode.
10) Have configuration where you can set the pulse value like pulse/wh or wh/pulse or pulse/kwh or kwh/pulse
