제품 상세 정보:
결제 및 배송 조건:
|
| 표준 입력 경향: | 20-300A | 주파수: | 50-400Hz |
|---|---|---|---|
| 표준 정확도: | 0.5, 0.2 | 부하 용량: | ≤4Ω |
| 설치: | 중단 | 출력: | 리드 출력 |
| 강조하다: | 50Hz 분할 철심 홀 효과 경향 Sensor,25mm 분할 철심 홀 효과 경향 Sensor,20A 플렉스 핵심 전류 변압기 |
||

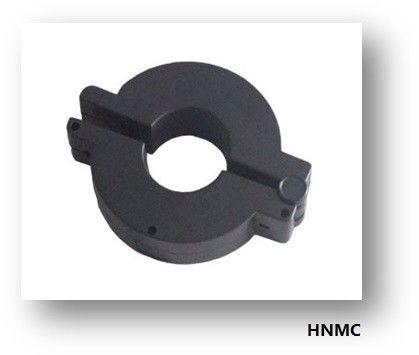

Split Core Current Transformer KH25
Application
1. Power Systems
2. A place with tight space
3. Where can't be cut off
Product functions and features
split iron core design, Low core loss and high accuracy, no need to re-insert the bus bar, easy to install and disassemble. nice appearance. Good product consistency and good linearity at low current
Selling point
1. Split core design, low core loss and high accuracy;
2. No need to disconnect the bus bar, easy installation, does not affect the normal electricity consumption of customers;
3. Beautiful appearance, small size, light weight;
4. Buckle opening and closing Structure, easy to open and close.
The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
These CTs can be mounted without removing existing cables for easier installation.
APPLICATIONS
Characteristic : apply to test on line below 300A
Clamp diameter: Φ25mm
Size: 57mm×76mm×20mm
Load capacity:≤4Ω
installation:suspension
Output :lead output
Parameter list:
| Primary Current | Secondary current | class |
| 20A | 10mA | 0.2,0.5 |
| 30A | 30mA | 0.2,0.5 |
| 30A | 15mA | 0.2,0.5 |
| 30A | 10mA | 0.2,0.5 |
| 40A | 40mA | 0.2,0.5 |
| 40A | 20mA | 0.2,0.5 |
| 50A | 50mA | 0.2,0.5 |
| 50A | 25mA | 0.2,0.5 |
| 60A | 30mA | 0.2,0.5 |
| 60A | 20mA | 0.2,0.5 |
| 80A | 40mA | 0.2,0.5 |
| 100A | 50mA | 0.2,0.5 |
| 100A | 40mA | 0.2,0.5 |
| 300A | 150mA | 0.2,0.5 |
Outdoor Split-core Current Transformer Application
- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring
Outdoor Split-core Current Transformer Features
- Outdoor rating IP68
- UV stabilized thermoplastic.
- compliant to IEC61869-2
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
