제품 상세 정보:
결제 및 배송 조건:
|
| 표준 입력 경향: | 50-1000A | 주파수: | 50-400Hz |
|---|---|---|---|
| 표준 정확도: | 0.5, 0.2 | 출력: | 리드 출력 |
| 턱: | 80 밀리미터 | 색: | 검정 또는 백색 |
| 하이 라이트: | 80mm Split Core Type Current Transformer,Black Split Core Type Current Transformer,400Hz Split Core Current Transducer |
||

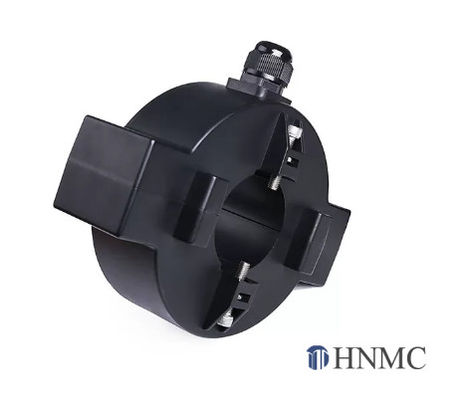

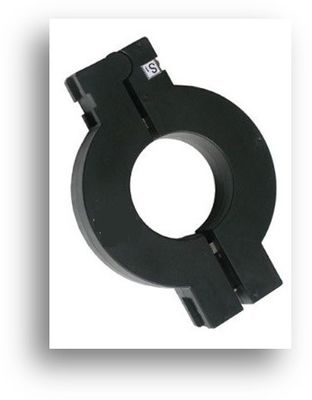

AC Split Core Current Transformer KH80
Technical Parameters
| Load capacity | <=4ohm (mA output); <=1VA (1A output); <=5VA (5A output, 600-1000A); <=2.5VA (5A output, <=500A) |
| Diameter | 80mm |
| Dimension | 193*138*28mm |
Weatherproof Outdoor Split-core Current Transformer IP68 0.5 or 0.2 Class Power Distribution line monitoring
outdoor split-core current transformer, provide either 1A or 5A output and are designed to monitor outdoor
conductors in distribution lines. The product design for these outdoor current transformers is such that they
can convert an AC input current of up to 2000A amperes into an output of 5A or 1A depending on customer
requirements. adopt permalloy sophisticated core corrosion proof design for outdoor use. Our outdoor split
core CTs are IP68 protection rated and strong UV resistance.
Outdoor Split-core Current Transformer Application
- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring
Outdoor Split-core Current Transformer Features
- Outdoor rating IP68
- UV stabilized thermoplastic.
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
| Primary current | Secondary current | class |
| 50A | 50mA | 0.2, 0.5 |
| 100A | 100mA | 0.2, 0.5 |
| 200A | 200mA | 0.2, 0.5 |
| 300A | 300mA | 0.2, 0.5 |
| 400A | 400mA | 0.2, 0.5 |
| 500A | 500mA | 0.2, 0.5 |
| 50A | 25mA | 0.2, 0.5 |
| 400A～1000A | 5A | 0.5 |
| 600A～1000A | 5A | 0.5 |
