제품 상세 정보:
결제 및 배송 조건:
|
| 정밀도 계급: | 0.2, 0.1, 0.05, 0.02 | 전류 범위: | 1mA-12A (다이렉트 모드) |
|---|---|---|---|
| 전압 범위: | 1-576V | 조화되는: | 2-51 번 |
| 주파수: | 40-70Hz | 시험 기능: | 에러, 다이얼 시험, CT 비검정, ....기타 등등 |
| 시험 미터: | 단일 상, 3상 미터 | 결의안: | 여섯 디지트 유효값 |
| 강조하다: | 0.05 Class Portable Meter Test Equipment,1mA Portable Meter Test Equipment,dial test Reference Meter |
||

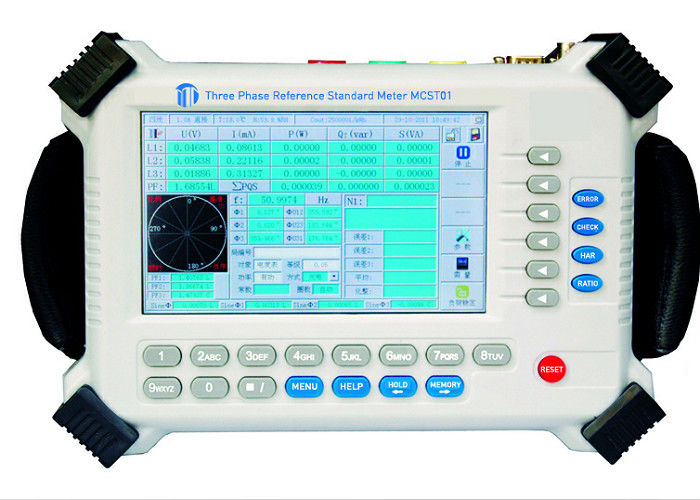

Portable Meter Test Equipment Three Phase Reference Standard Meter MCST01
1) Accuracy class (optional): 0.2, 0.1, 0.05, 0.02
2) Suitable for use in lab or on site.
3) Can test two meters at same time
4) 7” LCD display, touch screen operation
5) Harmonic times test up to 51 times
6) Demand Test/CT ratio test/polarity test/CT secondary burden test/VT secondary burden test
7) Accessories: scanning head, clamp-on CT, flexible rogoski coil, snap switch, current & voltage cables,
communication cable, user manual, PC software
Technical Parameters
| Current Measure | |
| Direct mode range | 1mA-12A |
| Clamp-on CT mode range | 5A, 100A, 300A…...2000A (optional) |
| Rogowski Coil mode | 3000A…5000A…10000A (optional) |
| Accuracy |
0.05% (10mA-12A) 0.2% (clamp-on CT mode) 1% (rogowski coil mode) |
| Resolution | High resolution, Six digits valid value |
| Voltage Test | |
| Range | 1-576V, maximum can be 600V |
| Accuracy | 0.05% (30-576V) |
| Resolution | High resolution, Six digits valid value |
| Power/Energy Test | |
| Accuracy (Active/apparent) |
0.05% (direct current mode) 0.2% (clamp-on CT mode) 1% (rogowski coil mode) |
| Accuracy (reactive) |
0.1%(direct current mode) 0.4% (clamp-on CT mode) 2% (rogowski coil mode) |
| Resolution | High resolution, Six digits valid value |
| Frequency measure | |
| Range | 40-70HZ |
| Accuracy & Resolution | ±0.01HZ & 0.001HZ |
| Phase Angle Measure | |
| Range | 0-360 deg. (0 - ±180deg.) |
| Accuracy | ±0.05°(current input>10%Ib) |
| Resolution | 0.001° |
| Power factor range | 0-1 |
| CT/VT Secondary burden test | |
| Accuracy | ＜±1% |
| Other parameters | |
| Power supply |
Auxiliary: AC 45-450V Power supply from test circuit Battery (optional) |
| Power consumption | <13VA |
| Size & Weight | 245*168*70 (mm) & 1.8KGS |
Technical support
1. Most our products are following international standard and follow some popular technology.
2. We have special technicians to provide consulting service and for every project, we offers most suitable and economic solution.
3. In solution design stage, we fully consider its easy-to-maintenance for client.
