제품 상세 정보:
결제 및 배송 조건:
|
| 출력 전압: | 0-240V | 출력 전류: | 1.5A, 5A, 10A, 20A, 40A |
|---|---|---|---|
| 출력 전원: | <3000va> | 지표 정확도: | 1개 클래스 |
| 입력 전압: | 220V+/-10% | 애플리케이션: | 제조들 공장 |
| 강조하다: | 3000VA 240V 에너지 미터 테스트 장비,3000VA 에너지 미터 테스트 장비,3000VA 96 위치 미터 테스트 장비 |
||

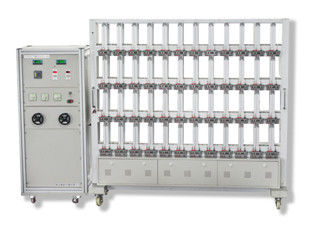

Single Phase Meter Aging and Cyclometer Test Equipment
1. Widely used in meter factories
2. Stable qualtity and economic budget
3. 96 positions
Feature & Characteristic
1. Whole system mainly including source and 96 positions mounting rack
2. Aluminum extrusions frame, special material for this bench rack
3. With various protections as below
4. Voltage circuit: over voltage and over current protection
5. Current circuit: secondary circuit over current protection
6. Regulator thermostat control and Fan cooling at room temperature
7. With counting and timing control
8. Three universal changeover switch: current range switch, reversing switch, load matching switch
9. With digital indicator, voltage and phase can be read directly, also can read percentage of current
10. With communication interface RS485
Technical Index
| Indicator accuracy | |
| Voltage | 1.0 |
| Current | 1.0 |
| Output | |
| Voltage | 0-240V |
| Current measuring range | 1.5A, 5A, 10A, 20A, 40A |
| Power |
voltage loop: <3000VA current loop: <3000VA |
| Input voltage (power supply): 220V+/-10% | |
| Dimension | |
| Control source | 600*500*1520mm (L*W*H) |
| Mounting rack | 1800*550*1800mm(L*W*H) |
