제품 상세 정보:
결제 및 배송 조건:
|
| 정확도: | ≤±0.2% | 부피 컨테이너 정확도: | 0.04% |
|---|---|---|---|
| 결의안: | 0.1% | 미터는 수를 배치합니다: | 2....20 |
| 동작 압력: | 0-35-0.5Mpa | 애플리케이션: | 실험실 |
| 제어: | PC 통제 | 전원 공급기: | 세 단계 230V±10% AC, 50HZ |
| 물 탱크: | 2400*1160*800mm | 전체 중량: | 1250kg |
| 강조하다: | 0.1% 미터 테스트 벤치,50HZ 미터 테스트 벤치,IEC 수량계 테스트 |
||

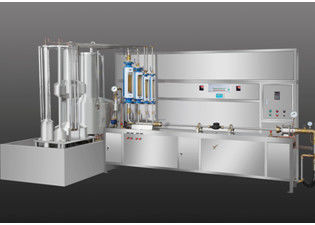

Water Meter Test Bench
1) Widely used in water meter factory or lab
2) Compliance with relative IEC standard
Structure & Features
1) Comprises of:
platform (totally stainless steel), multistage water pump (11kW, low noise), flow meters, clamps,
water tank (2.2 m3=2200L), flow regulator (various frequency control box, 11kW), measuring
system (volume method), 1m3 buffer tank, valve, high tension soft pipe, filter, anti-vibrator,
flow meter base, switches and etc.
2) Equipped with three different volume container namely 10L, 50-100L and 500L
3) Water meter withstand pressure test: 2MPa
4) Manual, Semi-automatic, or Fully automatic (optional)
5) PC software provided (optional)
6) PLC control (optional)
Function & Technical Index
| Accuracy of metering | ≤±0.2% |
| Accuracy of volume container | 0.04% |
| Resolution | 0.1% |
| Specs of water meter under test | ￠15mm,￠20mm, ￠25mm, ￠40mm, ￠50mm |
With below instantaneous flow meters:
LZB-80, flow range: 7-31.25m3/h
LZB-50, flow range: 0.2-6.3m3/h
LZB-25, flow range: 0.02-0.5m3/h
LZB-15, flow range: 0.004-0.08m3/h
Glass rotor flow counter
With 5 pcs stainless steel ball valve, 8 pcs brass ball valve, and 3 pcs pressure indication meter
Numbers of water meter to be tested
| 15mm (meter length 165mm) | 20PCS |
| 20mm (meter length 195mm) | 18PCS |
| 25mm (meter length 225mm) | 16PCS |
| 40mm (meter length 245mm) | 2PCS |
| 50mm (meter length 280mm) | 2PCS |
2PC clamps, 2PCS clamp switch, 3PCS drain switch of volume container and 1PC flow meter base.
Working pressure: 0-35-0.5MPa
Power supply: three phase 230V±10% AC, 50HZ
Size & Weight
| Water Tank | 2400*1160*800mm |
| Working platform | 3000*600*750mm |
| Package size of volume container and water tank | 2600*1300*2230mm |
| Package size of test bench | 3650*750*1500mm |
| Total Weight | 1250KG |
