| 정격 전류: | 1A, 5A | 역율: | 0.8, 1.0 |
|---|---|---|---|
| 정밀도 계급: | 3 | 정격 주파수: | 50/60 Hz |
| 정격 전압: | 110V, 100V, 110V/√3V, 100V/√3V | 단열재: | 공기 |
| 강조하다: | 자동 전압 변환 장치 Burden,110V 전압 변환 장치 Burden,3% 트랜스 시험 장비 |
||

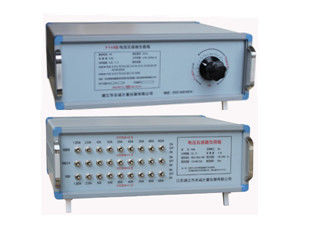

Manual or Automatic CT VT Burden box FYC series
FYC47-49 CT Burden
Technical Parameter
| Rated Current: | 5A, 1A |
| Power Factor and Rated Burden: |
COSΦ=0.8: 5VA, 10VA, 15VA, 20VA, 30VA COSΦ=1.0: 1VA, 2VA, 5VA |
| Accuracy Class: | ±3% |
| Operation Range: | (1%-200%). In |
| Test Cable Resistance: | 0.02Ω |
| Frequency: | 50Hz |
| Withstand Voltage: | 2kV/1min |
| Insulation: | Air |
| Operating Mode: | Continue at 200%.In |
| Control Mode: | Manual and computer controllable (protocol provided) |
| Cooling Mode: | Fan |
FYC95 PT Burden
Technical Parameters
| Rated Voltage: | 110V, 100V, 110V/√3V, 100V/√3V |
| Power Factor and Rated Burden: |
COSФ=0.8: 10VA, 25VA, 50VA, 100VA (Total burden:185VA) COSФ=1.0: 1VA, 2.5VA, 5VA, 10VA (Total burden:18.5VA) |
| Accuracy Class: | ±3% |
| Operation Range: | (20%-190%). Un |
| Frequency: | 50Hz |
| Withstand Voltage: | 2kV/1min |
| Insulation: | Air |
| Operating Mode: | Continue at 190%.Un |
| Control Mode: | Manual and computer controllable (protocol provided) |
| Cooling Mode: | Fan |
Technical service
Much experienced technical team will provide strong technical support for your market development. We can provide support on customization, maintenance, device design, construction scheme, design optimization, and product development.
Quality control
We have professional quality control team. Our quality control covers materials, production procedure, finished product inspection, final inspection before loading, inspection report.
