제품 상세 정보:
결제 및 배송 조건:
|
| 표준 입력 경향: | 600-2000A | 주파수: | 50-400Hz |
|---|---|---|---|
| 표준 정확도: | 0.5 (1A 또는 5A 출력), 0.2 (마 출력) | 부하 용량: | ≤5VA (이차적 5A) ; ≤1VA (이차적 1A) |
| 설치: | 중단 | 출력: | 리드 출력 |
| 턱: | 60*30mm | 색: | 검정 또는 백색 |
| 하이 라이트: | IP68은 핵심 전류 변압기,비바람에 견디는 분할 철심 전류 변압기,하얀 600A 분할 철심 CT를 분리했습니다 |
||

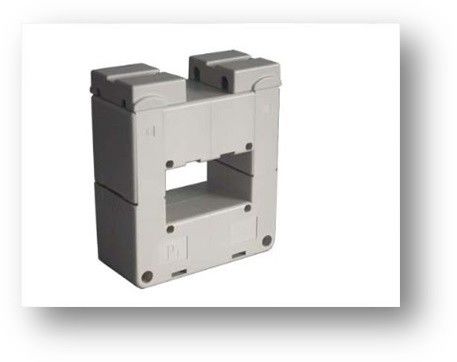

Split Core Current Transformer SKH60
Weatherproof Outdoor Split-core Current Transformer IP68 0.5 Power Distribution line monitoring
Features & Technical Parameters
| Characteristic | apply to copper row test on line |
| Current range | 600-2000A |
| Accuracy class | 0.5 (1A or 5A output), 0.2 (mA output) |
| Jaw | 60mm×30mm |
| Dimension | 106mm×110mm×49mm |
| Load capacity maximum | 1VA(1Aoutput),5VA(5A output), 4ohm (mA output) |
| Output | Terminal output |
| Installation | Bracket |
Outdoor Split-core Current Transformer Application
- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring
Outdoor Split-core Current Transformer Features
- Outdoor rating IP68
- UV stabilized thermoplastic.
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
