제품 상세 정보:
결제 및 배송 조건:
|
| 표준 입력 경향: | 1000-5000A | 주파수: | 50-400Hz |
|---|---|---|---|
| 표준 정확도: | 0.5 (1A 또는 5A 출력), 0.2 (마 출력) | 부하 용량: | 1VA(1Aoutput), 5VA (5A 출력), 4Ω (마 출력) |
| 설치: | 중단 | 출력: | 리드 출력 |
| 턱: | 150 밀리미터 | 색: | 검정 또는 백색 |
| 하이 라이트: | 150mm Split Core Current Transformer,5000A Split Core Current Transformer,white split type ct |
||

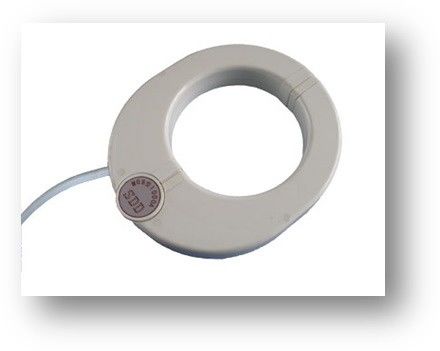

Split Core Current Transformer KH150
Weatherproof Outdoor Split-core Current Transformer IP68 0.5 class
| Characteristic | apply to test on line below 5000A |
| Clamp diameter | Φ150mm |
| Accuracy class | 0.5 (1A or 5A output), 0.2 (mA output) |
| Size | 230mm×269mm×44mm |
| Load capacity maximum | 1VA(1Aoutput),5VA(5A output), 4Ω (mA output) |
| Installation | Suspension |
| Output | Lead output |
Outdoor Split-core Current Transformer Application
- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring
Outdoor Split-core Current Transformer Features
- Outdoor rating IP68
- UV stabilized thermoplastic.
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety
| Primary current | Secondary current | class |
| 1000A-3000A | 5A | 0.5 |
| 1000A-5000A | 1A | 0.5 |
| Working conditions | |
|---|---|
| Operating temperature | -35°C to +65°C, not exceeding +40°C |
| Storage temperature | -40°C to +70°C |
| Ingress Protection | IP68 |
| Environment | outdoors or indoors |
| The Height of above sea level | 0- 3000m |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
