제품 상세 정보:
결제 및 배송 조건:
|
| 정밀도 계급: | 0.1 | 애플리케이션: | 실험실, 작업장 |
|---|---|---|---|
| 전압 산출: | 0-100V | 현 생산량: | 0-15A |
| 기능: | 비율, 비율과 페이즈 각 에러....기타 등등 | 중량: | 8.5kgs |
| 강조하다: | 100V CT PT Test Equipment,100V 15A CT PT Test Equipment,worksite 15A 100V Current Transformer Analyzer |
||

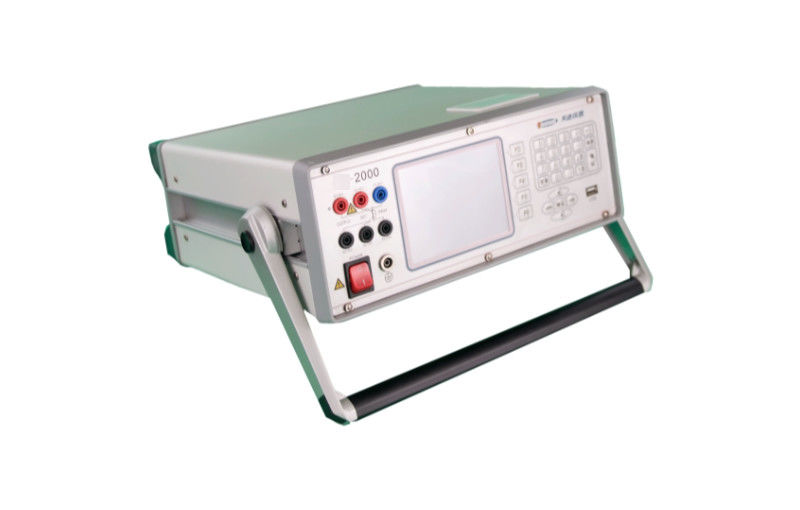

Current Transformer Tester and Analyzer MCCT2000
| Output | |
| Voltage Output | 0～100V (AC) |
| Current Output | 0～15A (Peak) |
| Measurement | |
| Current Measurement Accuracy | ±0.1% |
| Voltage Measurement Accuracy | ±0.1% |
| Secondary Side Voltage Measurement Input | 0 – 1.0/10/100 VAC (Auto Range) |
| Primary Side Voltage Measure Input | 0 – 0.03/0.3/3 VAC (Auto Range) |
| Ratio Measurement | |
| Ratio Measurement Accuracy | ±0.1% |
| Phase Angle Measurement | |
| Phase Angle Measurement Accuracy | ±1min |
| Phase Angle Measurement Resolution | 0.1min |
| Winding Resistance Measurement | |
| Winding Resistance Measurement Range | 0～100Ω |
| Winding Resistance Measurement Resolution | 1mΩ |
| Burden Measurement | |
| Burden Measurement Range | 0～80Ω |
| Burden Measurement Resolution | 1mΩ, cosΦ: -1~+1 |
| Operation Condition | |
| Temperature | -10℃～50℃ |
| Humidity | ≤90% |
| Others | |
| Dimention | 36mm×36.5mm×15.5mm |
| Weight | <8.5kg |
Features
1) Portable, light-weighted current transformer analyzer.
2) It employ frequency shifting technology to measure CT’s magnetic characteristic.
3) It can easily measure the knee point of current transfomer from several volts to hundreds volts.
4) Measurfe magnetic exciting curve
5) Measurement of DC resistance of the transformer winding
6) Measure errors of current ratio and phase angle
7) Check the polarity of CT
8) Measure 10% and 5% error curves with rated current multiple against burdens
9) Knee point current and voltage
10) Measure CT burden
11) Light-weight (<8.5kg)
