0.05% Standard Bench Type CT PT Test Equipment Test Bench HES-10

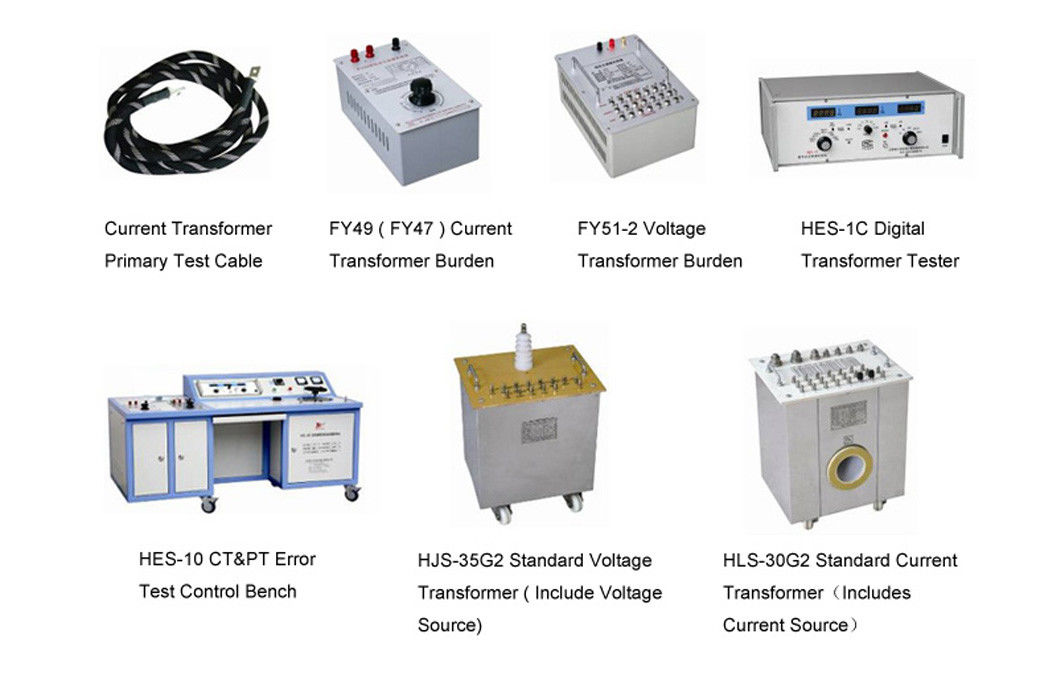

System Configuration:
1) HES-10 CT&PT Test Bench
2) HES-1C Digital Transformer Tester
3) FY49 Current Transformer Burden (5A/1A optional)
4) HLS-30G2 Standard Current Transformer ( with Current Source)
5) FY95 Voltage Transformer Burden (100V,100/√3V or other ratio requirements are available)
6) HJS-35G2 Standard Voltage Transformer ( with Voltage Source)
7) Current Transformer Primary Testing Cable
8) CT & PT Secondary Testing Cable
9) PC Test software
Main Function
Ratio error and phase angle error test of CT & PT
Technical Parameter & Features
HES-10 CT&PT Test Bench
| Input Voltage | AC 220+/-10% 50HZ, Single Phase |
| Output voltage | AC 0-250V |
| Rated Capacity | 10KVA |
| Adjustment method | Manual, coarse & fine adjustment |
| “Open-circuit demagnetization”, “Closed-circuit demagnetization”, “Error measurement” | |
| Over current protection | |
| Equipment Can be installation and placed: FY current transformer burden,FY voltage transformer burden,HES-1C Digital Transformer Tester,Other Control function etc | |
HES-1C Digital Transformer Tester
| Rated current &voltage | 5A, 1A, 110V, 110/√3V, 100/√3V, 100/3V etc |
| Measuring Range | |
| Ratio error | ±0.0001% ~ ±19.99%(three positions: 0.1999%, 1.999%, 19.99%). Minimum resolution:0.0001%. |
| Phase error | ±0.01' ~ ±900'(three positions: 9.00',90.0',900'). Minimum resolution: 0.01' |
| Impedance | 0.001Ω~ 19.99Ω. Minimum resolution: 0.001Ω |
| Admittance | 0.001 ms ~ 19.99ms. Minimum resolution:0.001 ms |
| Power consumption | < 20VA |
| Rated frequency | 50 or 60HZ |
HLS-30G2 Standard Current Transformer with current generator
| Rated Primary Current (A) | 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 120, 150, 160, 200, 250,300, 315, 400, 500, 600, 630, 750, 800, 1000, 1200, 1250, 1500, 1600, 2000, 2500, 3000, 3150....or More (optional) |
| Rated Secondary Current | 5A, 1A |
| Accuracy class | 0.05% or higher |
| Rated secondary load | 0.2 ohm |
| Frequency | 50HZ |
| Operating Range | 1% - 120% |
| Current source Capacity | 10kVA or more |
FY49 current transformer burden
| Rated Current | 5A or 1A (optional) |
| Operating Range | 1%--120% |
| Rated load (VA) |
CosФ = 0.8: 2.5, 3.75, 5, 6.25, 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60 VA or more options CosФ = 1.0: 2.5, 3.75, 5, 6.25, 7.5, 10 VA or more options |
| Rate Frequency | 50Hz |
| Accuracy Class | ±3% |
FY95 Voltage transformer burden
| Rated voltage | 100V, 100/√3V or more options |
| Operation Range | 20%--120% |
| Rated load | 1.25VA, 2.5VA, 5VA, 10VA,20VA, 40VA, 80VA (Total load:158.75 VA) or more option |
| Fundamental error | ±3% |
| Power factor | COSФ=0.8 |
| Rated Frequency | 50Hz |
HJS-35G3 Standard Voltage Transformer with Voltage Generator
| Rated primary voltage | 6kV,10kV,15kV,22kV,35kV or more option |
| Rated secondary voltage | 100V,100/√3V,110V,110/√3V, or more option |
| Accuracy class | 0.05% or higher accuracy class |
| Secondary capacity | 0.5VA or more option |
| Power factor | cosΦ=1.0 |
| Power frequency | 50HZ |
| Range of operating voltage | 20%--120% |
| Current transformer primary test cable |
2000A x 3m x 1set,1000A x 5m x 1set 500A x 1.5m x 2set,250A x 1.5m x 2set,100A x 1.5m x 2set |
| CT PT secondary test cable | Provided |
