| 이름: | 에너지 미터 테스트 벤치 | 정밀도 계급: | 클래스 0.1 |
|---|---|---|---|
| 조정 범위: | 0 ~ 288V | 결의안: | 0.01% |
| 왜곡: | ≤ 0.5% | 정확도 & 안정성: | ≤ 0.05% |
| 강조하다: | 288V 단일 상 에너지 계량기 테스트 벤치,120A 단일 상 에너지 계량기 테스트 벤치,수업 0.1 미터 시험 장비 |
||

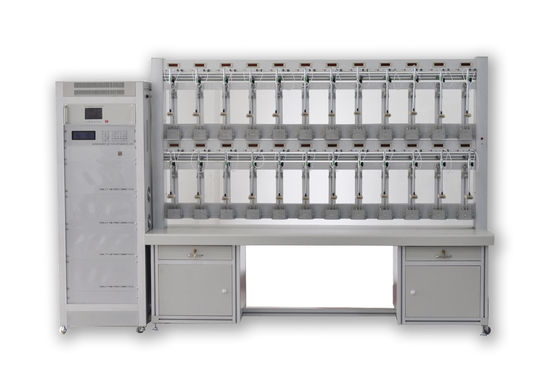

Class 0.1 Single Phase Energy Meter Test Bench 0 ~ 288V 1mA~ 120A
Features
1) PWM (Pulse width modulation) technology
2) Modular design allows customized configurations on hardware and software, customer-friendly
3) Perform all tests like creep test, starting test, basic errors, dial test, standard deviation and etc...
4) Measurement of voltage, current, power (active, reactive, apparent), phase angle and frequency
with real time display of vector diagram
5) Harmonic test (2-21 times) and analysis & display of harmonic
6) Measure all types of single phase mechanical meters and electronics meters, able to test
close-link meter, meters with RF communication module with protocol provided by end user
7) Mode of tests: Fully-automatic, or manual operate by touch screen
8) Error calculation reset buttons in each meter position; error LED display timely.
9) QCD for quick connect the meters on the rack
10) Soft start/stop output
11) Black mark search & capture for the rotation disk
12) Testing various meters with different cosntant on positions
13) Test records memory for later continued calibration
14) Store test data, inquiry and print out and also can change format of report
15) Dial test for various kinds of electric meters
16) RS232 or RS485 communication
17) PC software for operation
18) Support inputting barcode and self-definition, convinient for test management
19) Auto short-circuit function if meter absence
Optional for dual current channels test (phase current, neutral current) at same time/separately
Single Phase Energy Meter Test Bench SYS12 series
| Accuracy class | 0.1, 0.05 |
| Standard Meter class | 0.05, 0.02 |
| Output Voltage | |
| Range | 1-288V |
| Resolution | 0.01% |
| Distortion | <0.5% |
| Accuracy & Stability | <0.05% |
| Power | >25VA/position |
| Output phase angle | |
| Adjustment Range | 0° ~ 360° |
| Resolution | 0.01° |
| Output current | |
| Range | 1mA-120A |
| Resolution | 0.01% |
| Distortion | <0.5% |
| Accuracy & stability | <0.05% |
| Power | >50VA/position |
| Output Frequency | |
| Range | 45-65HZ |
| Resolution | 0.01HZ |
Configurations
1. Single phase Power source (PS)
2. Single phase Standard reference meter (SRM), class 0.05 (or class 0.02 or 0.1 on demand)
3. The Rack
Number of positions: Customizing on demand by end-user (6, 10, 12, 20, 24, 30, 48 ...positions)
Each rack equip 1 emergency STOP switch
Each posistion consist of: 1 QCD 3 pins + 1 scanning head + 1 meter clamping + 1 RS/232or485
Communication port + 1 error display + 1 RESET button + 1 Set of voltage cable
4. PC Control software
5. Manual control by touch screen
6. Optional
· MSVT (Multi-secondary voltage transformer) purpose to test the meters with close-link circuit
- Accuracy class: 0.01%
- Ratio: 1:1
- Nominal Input/Output voltage: 220V
- Maximum Input/Output voltage: 300V
- Number of secondary: Equal to number of positions
· Personal Computer
· Printer
