| 평가된 주 입력: | 5A | 최대 주 입력: | 50A |
|---|---|---|---|
| 이차 산출: | 10mV/ A | 주파수: | 45 Hz 내지 60 Hz |
| 개시: | 15mm/ 0.59 " | 산출 케이블: | 3.00m/ 9.8 FT |
| 강조하다: | 15mm AC Current Clamp Probe,60HZ AC Current Clamp Probe,5A clamp on current transformer |
||

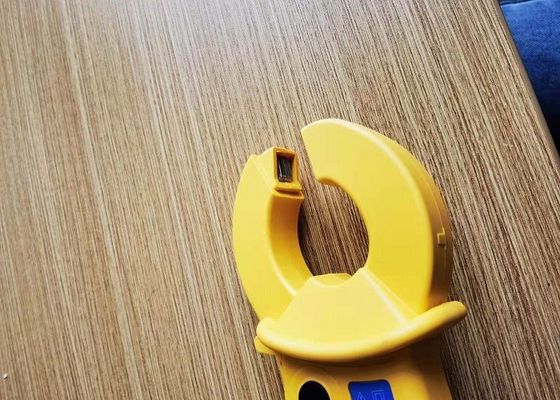

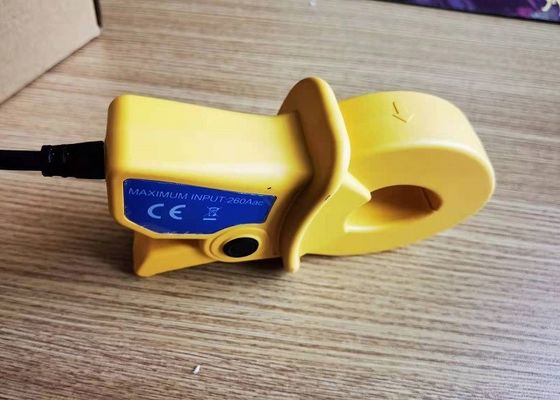

60HZ AC Current Clamp Probe iProbe MC200:
The clamp-on core design permits non-contact current measurements through magnetic field induction without requiring that the primary conductor be taken offline and disconnected for current measurement. Featuring high accuracy and low phase sift, the iProbe is especially well suited for Class A meter current measurement and harmonic analysis.
Specifications:
• Frequency: 45 Hz to 60Hz
• Maximum Operating Voltage: 600VAC
• Dielectric Withstand Voltage: 3,536 VRMS
• Dielectric Resistance: 1,000 MΩ @ 500 VDC
• Secondary Burden Resistance: ≥ 100K Ohm
• Operating Temperature: -15ºC to +50ºC.
• Relative Humidity: 80%, non-condensing
• Output Cable: 3.00m (9.8FT) PVC insulated reinforced coaxial cable.
• Cable Termination Options: BNC connector Ø 4mm RED/ BLACK banana plugs
• CAT II (MC005 and MC100)
• CAT III (MC200) • RoHS Compliant.
Iprobe Clamp-on Current Transformer Models
| Part Number | Rated (Amp) | Max (Amp) | Output | ID (mm) | Accuracy | Phase shift | Working voltage |
| MC 005 | 5A | 50A | 100mV/A | Ø15 | ±0.3% (45-60HZ) | ±2°(45 to 5kHZ) | CAT II600V |
| MC 001 | 100A | 120A | 100mV/A | Ø15 | ±0.3%(45-60HZ) | ±2°(45 to 5kHZ) | CAT II600V |
| MC 200 | 20A | 30A | 10mV/A | Ø24 | ±0.3%(45-60HZ) | ±2°(45 to 5kHZ) | CAT II600V |
| 200A | 260A | 1mV/A |
