제품 상세 정보:
결제 및 배송 조건:
|
| 애플리케이션: | GIS, 트랜스, SG, 기타 등등 | 기능: | PD 테스트 & 위치 |
|---|---|---|---|
| UHF 위치: | -75dBm- 0dBm | AE 위치: | 0dBuV-68dBuV |
| 강조하다: | 12 밀리미터 트랜스 부분 방전 테스터,UHF 트랜스 부분 방전 Tester,200KHz 부분 방전 분석기 |
||

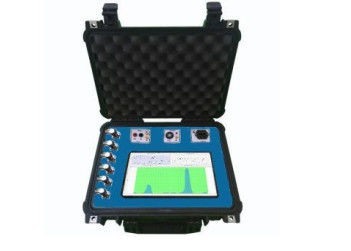

Multifuction Partial Discharge Location System
Technical Parameter
UHF Location (2-8 channels)
| Measurement range | -75dBm - 0dBm |
| Sensitivity | >12mm |
| Resolution | +/-0.5dB |
| Frequency response | 300MHz-1500MHz |
| Output impedance | 50Ω |
AE location (double channels)
| Measurement range | 0dBuV～68dBuV(0.001mv～1.000mv) |
| Sensor sensitivity | -65 dB (0 dB=1 volt/μbar Valid value SPL) |
| Resolution | 1dB |
| Accuracy | +/-1dB |
| Frequency range | 0-200kHz |
Feature
1) Suitable for Parital discharge Test and location of GIS, Transformer, Switchgear, cables and etc
2) Also can be used for online partial discharge monitoring & location of GIS and Switchgear
3) Two test & location way: ultrasonic, UHF
4) Multiple Atlas like PRPD,PRPS,Flying and etc
5) Inbuilt typical interference & discharge Atlas
6) Can auto identify signal type
7) Accurate location and anti-interference
8) Provide temperature , humidity, air pressure monitoring value
