제품 상세 정보:
결제 및 배송 조건:
|
| 제품: | 다기능 부분적 방전기 테스터 | 모델: | MCPD004 |
|---|---|---|---|
| 보증: | 1년이요 | 주파수 범위: | 3-100MHz |

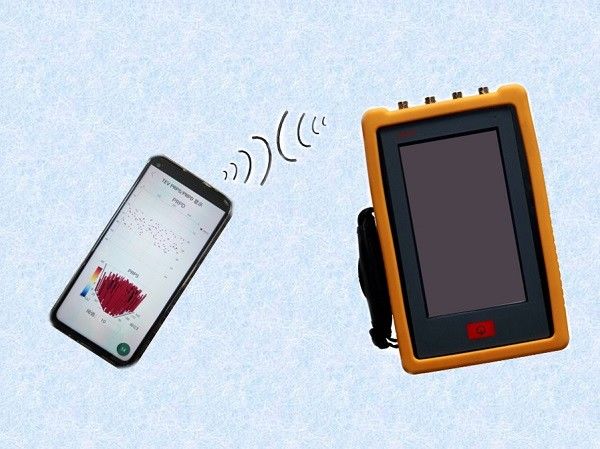

| 조작 모드: | LCD 터치 스크린, Android APP | 데이터 관리: | 소프트웨어에서 사용 가능 |
| 강조하다: | USB Partial Discharge Test Equipment,HFCT Partial Discharge Test Equipment,50ohm Partial Discharge Analyzer |
||

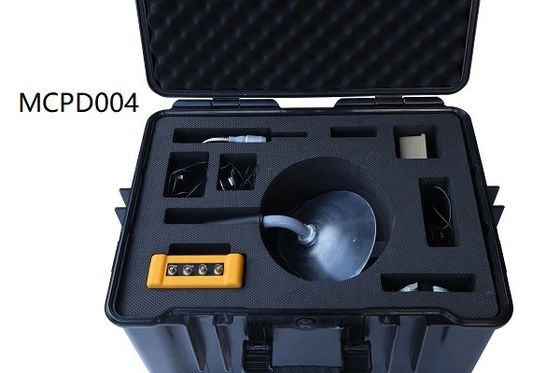

Multi function Partial Discharger Tester MCPD004
Adopting advanced and modern technology and provide better user experience
Technical Index

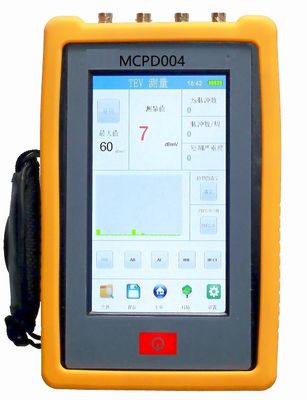

1.TEV measurement
| Item | Specification |
| Sensor | capacitance type |
| Range | 0-60bBmV |
| Frequency range | 3-100MHz |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Maximum impulse/cycles qty | 1400 |
2.Ultrasonic Measurement
| Item | Specification |
| Range | -7dBuV～68dBuV |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor sensitivity: | -65dB (0dB=1V/ubar RMS SPL) |
| Sensor center frequency: | 40kHz |
| Frequency range | 20～100kHz |
| Sensor diameter: | 16mm |
| Heterodyne frequency: | 38.4kHz |
3. AE contact-type ultrasonic measurement
| Item | Specification |
| Range | 0dBuV～68dBuV(0.001mv～1.000mv) |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor sensitivity | -65 dB (0 dB=1 volt/μbar RMS SPL) |
| Frequency range | 0～200 kHz |
4.HFCT high frequency DC measurement
| Item | Specification |
| Sensor type | HFCT |
| Range | 0pC～25000pC |
| Sensitivity | not more than 50pC |
| Test frequency | 200KHz～50MHz |
| Test band width | 100 MHz |
| Inner diameter | 45mm |
| Outer diameter | 110 mm |
| Output impedance | 50Ω |
| Output interface | BNC connector |
5. UHF ultra high frequency measurement
| Item | Specification |
| Sensor type | UHF |
| Range | - 65dBm ~0dBm/-10~60 dBm |
| Sensitivity | ＞10mm |
| Resolution | ±0.5dB |
| Frequency response | 300MHz～1500MHz |
| Output impedance | 50Ω |
| Output interface | BNC connector |
6.Size & Weight: 235mm*145mm*46mm / 1.5KGS
7.Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
