AC Current Probe in Digital Energy Meters Accuracy Class 0.5
Introduction

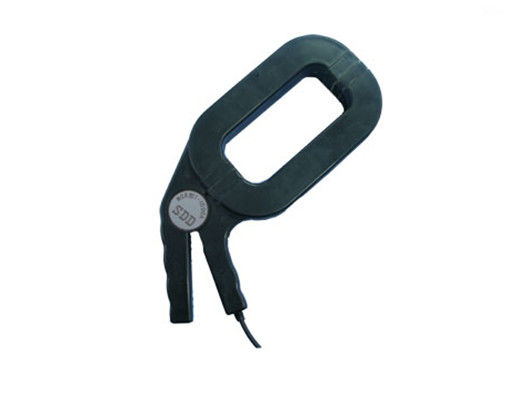

The model Q125A current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Applications
As clip-on transformer iron core must make it free open jewels, and technology development difficulty is very high, we further technology development for many years, has formed the one whole set of unique manufacturing process, thus the level of accuracy, reliability, product specifications and so on coverage in the domestic and international leading level, better meet the needs of the masses of users.
Parameter
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 3000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 3600A |
| Over voltage category | CAT III 600 V |
| Output signal (AC current) | 500mA,1A,5A AC at nominal input current |
| Electrical parameters - continued | |
| Output signal (AC voltage) | 333mV,500mV,1V,5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 116 x 290 x 36 |
| Weight (g) | 1200 |
| Holding wire diameter (mm) | φ120 x 50 |
| Max. jaw opening (mm) | 50 |
| Jaw color | White |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
| Primary current | Secondary current | Class % |
| 180A～1000A | 30mA | 0.5 |
| 1000A～2000A | 250mA | 0.1,0.2,0.5 |
| 1000A～3000A | 500mA | 0.1,0.2,0.5 |
| 300A～1000A | 1A | 0.2,0.5 |
| 1000A～3000A | 1A | 0.1,0.2,0.5 |
| 300A～1000A | 5A | 0.5 |
| 1000A～3000A | 5A | 0.2,0.5 |
