제품 상세 정보:
결제 및 배송 조건:
|
| 턱: | 6 밀리미터 | 사이즈: | 42.5mm×120mm×22mm |
|---|---|---|---|
| 설치 방법: | 죔쇠 유형 | 특성: | 아래 라인 5A 10A에 시험을 받기 위해 적용되세요 |
| 강조하다: | 6mm AC Current Clamp Probe,40Hz AC Current Clamp Probe,10A current probe clamp |
||

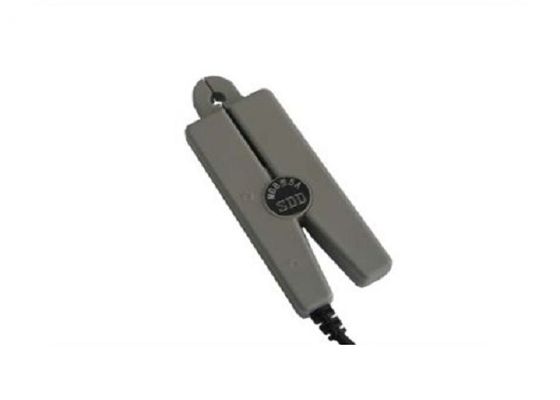

Characteristic: apply to test on line below 5A 10A
1. Improved ergonomic design and easy operation
2. High content nickel metal core
3. Low phase shift for power measurement
4. Small, compact size
5. Jaw opening accommodates conductors up to 6mm diameter
6. Designed for DMMs, loggers, recorders and oscilloscopes
7. 40Hz to 10kHz response
8. 1mA/A AC output signals
9. Designed to EN 61010, 600V CAT III safety standard
10. UL, CE mark
| Primary current | Secondary current | Turn compensation | Class % |
| 5A | 2mA | none | 0.5,1.0 |
| 5A | 2.5mA | none | 0.5,1.0 |
| 5A | 5mA | none | 0.5,1.0 |
| 10A | 4mA | none | 0.5,1.0 |
| 10A | 5mA | none | 0.5,1.0 |
| 10A | 10mA | none | 0.5,1.0 |
