| 정확도: | 1% | 결의안: | 0.1kV |
|---|---|---|---|
| 맥스 테스트 시간: | 9 | 맥스 출력 전압: | 100kV |
| 강조하다: | 0.1KV Insulation Resistance Test Set,9s Insulation Resistance Test Set,1% dielectric strength tester |
||

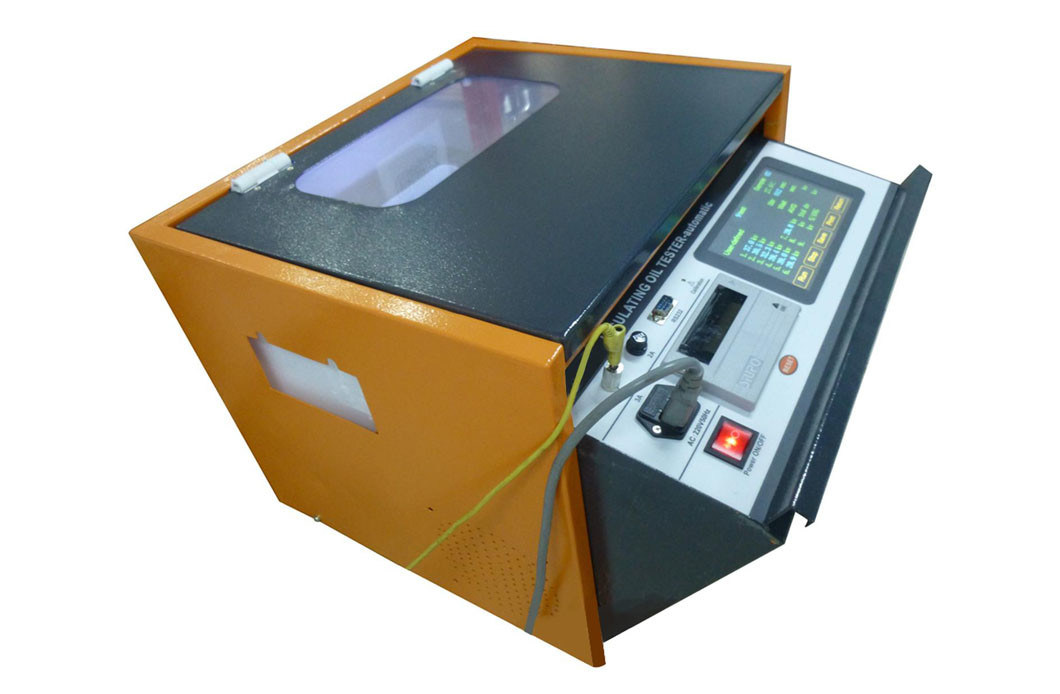

Insulation Dielectric Test-Insulation Oil Dielectric Strength Test Set MCOT502
Main Features
Adopting ARM in-built CPU system
Automatically fulfill the withstand-voltage test of insulating oil
Touch screen operation and 7” LCD display, easier to operate
With in-built thermal printer, which can print each breakdown and average voltage value
Can save 100 group test results
With Oil test temperature measurement unit
Technical Parameter
| Item | Parameter |
| Power Supply | AC240V±10% 50/60HZ |
| Output voltage | AC 0V~100KV |
| Rate of voltage | 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| Max test times | 9 |
| Wait times | 0~999s |
| Measurement accuracy | ±(1% of full scale + 2 digits) |
| Measurement Resolution | 0.1KV |
| Temperature Measurement range | 0℃ to 70℃, or better |
| Temperature resolution | 1℃, or better |
| Operating temperature | up to 45℃ |
| Weight | 38kg |
| Size | 460 mm*380mm*360mm |
