| 디스플레이: | LCD | 작동: | 완전히 터치 스크린 |
|---|---|---|---|
| 측정 범위: | 0.5mΩ-100KΩ | 결의안: | 0.1μΩ |
| 경향: | 10A | 데이터 저장: | 100개 그룹 |
| 강조하다: | 24V 직류권선 저항 테스터,LCD DC 권선 저항 Tester,90%RH 직류권선 저항 시험 |
||

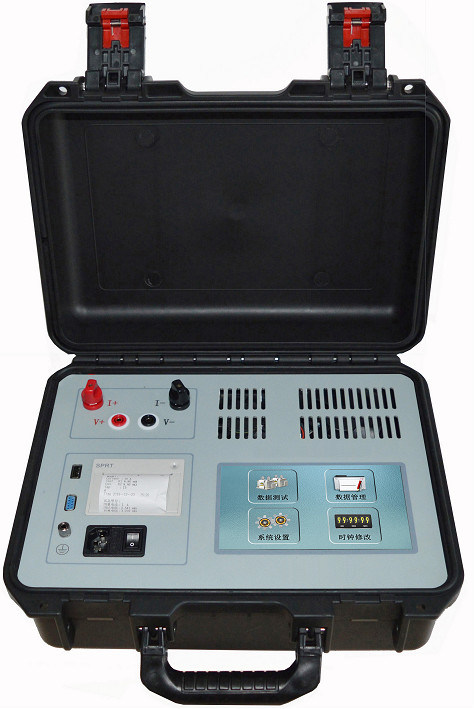

ZSR serial DC Resistance Tester
Functional features
1. Can operate by Android mobile phone or tablet
2. Maximum output voltage of instrument is 24V, convenient to select a larger test
current when the resistance value is high, so as to improve the test speed
3. Adopts new power supply technology, with many current ranges and wide measuring range.
Automatically select the current according to the load. Suitable for DC resistance measurement
of small and medium-sized transformers and voltage transformers.
4. With many protection functions, such as back EMF impact, wire breaking and power-off during the test,
overheat of power supply and so on.
5. With function of any temperature conversion of copper and aluminum materials, touch to input any
winding temperature and conversion temperature.
6. Intelligent power management technology, the instrument works in the minimum power state,
effective energy saving, reduce heating.
7. Seven inch high brightness touch color LCD, clear display under strong light, full touch screen operation,
free switching between Chinese and English.
8. With its own calendar clock and power-off storage, which can store 1000 groups of test
data and can be consulted at any time.
9. With Bluetooth communication, RS232 communication and USB interface for computer
communication and USB data storage.
10. Test results can be printed .
Technical Index
| Item | specification | Remark |
| Current |
AUTO,<20mA,40mA, 200mA,1A,5A,10A |
|
|
measurement range and accuracy |
0.5mΩ～0.8Ω (10A) 1mΩ-4Ω (5 A) 5mΩ-20Ω ( 1 A) 100mΩ-100Ω (200mA) 1Ω-500Ω (40mA) |
±(0.2%+2字) |
| 100Ω-100KΩ (<20mA) | ±(0.5%+2字) | |
| Resolution | 0.1μΩ | |
| Display | 7 inch touch LCD | Resistance display 4 digits effective value |
| Data save | 1000 group | |
| Work condition | Ambient temperature:0℃～40℃ Relative humidity: <90%RH,non condensing | |
| Power supply | AC 220V±10V,50Hz±1 Hz | fuse 2A |
| Consumption | 200W | |
| Dimension | 360*290*170(mm) | |
| Weight | Host Machine :6 KG cable box:5 KG |
|
Technical service
Much experienced technical team will provide strong technical support for your market development. We can provide support on customization, maintenance, device design, construction scheme, design optimization, and product development.
Quality control
We have professional quality control team. Our quality control covers materials, production procedure, finished product inspection, final inspection before loading, inspection report.
